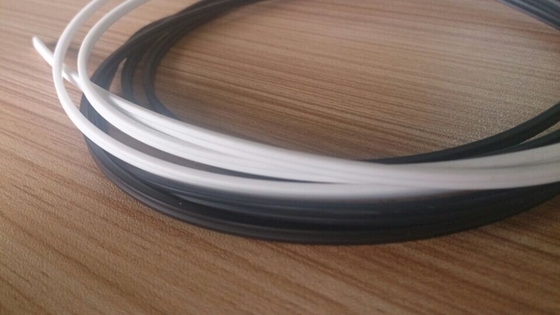

LSZH jacket GJXFH/GJXH bow-type drop cable 1 core single/multi mode optical fiber cable
Specifications:
GJXH Indoor FTTH fiber cable
1. 1 core to 4 core;
2. with LSZH jacket;
3. with steel wire strength member
Description:

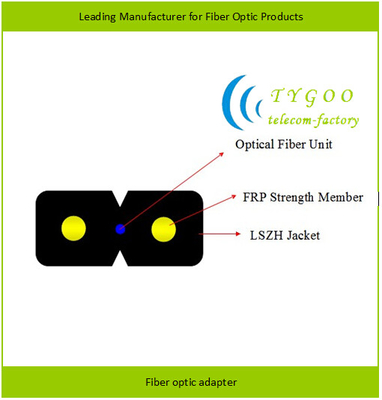

There are high quality 250μm fibers are placed in a loose tube made of a high modulus plastic which is filled with a water resistant filling compound.
Two Parallel steel wires or non metallic strength member are placed at the two sides .
The cable is completed with a polyethylene(LSZH) sheath.
Standards:Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc; and meet the requirements of UL approval for OFNR and OFNP.
Characteristics:
1.Small diameter,light weight and friendly installation
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Two parallel steel wires ensure tensile strength
5.long delivery length
6.Crush resistance and flexibility
Application:
1. Access network , fiber to the home
2. Support the Internet , CATV , telephone and more network service in the future

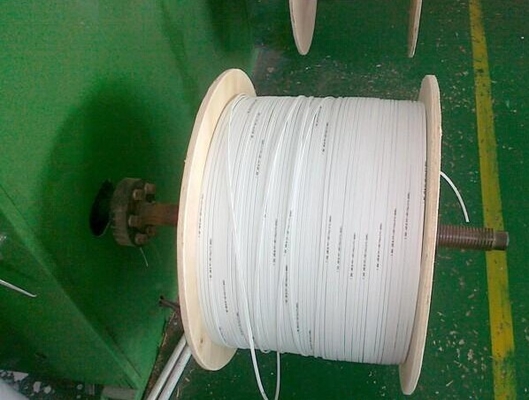

Packaging Details: plywood material drum
Color: White or Black
Delivery Detail: 3-7 days
