| Place of Origin: | China |
| Brand Name: | TG or OEM |
| Model Number: | FTTH-FTB104C |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1pc per inner box and outer carton |
| Delivery Time: | against the qty |
| Payment Terms: | TT; LC etc |
| Supply Ability: | 6000pcs per day |

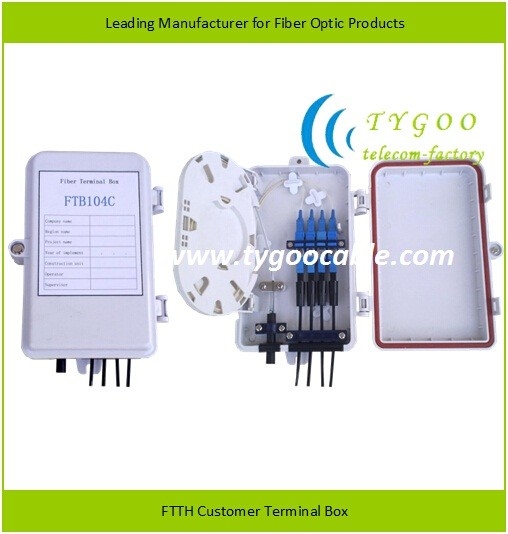

2. Can be installed on the wall( Wall mounted). May adapt variety of optical connection styles. Optical fiber can be managed effectively.
* Used for Indoor and Outdoor, waterproof type.
* Double-Deck design, Bottom part for installing adapters, pigtails and connecting outer Drop cables.
Middle part for splicing fiber and fixing cable and management. the base and cover of the box adopts self-clip and screw-slip two times lock method, which is better to use in outdoor for high sealing and waterproof
* Available for 1*2/1*4 PLC splitter, Could be connected FTTH Drop cables inside
* Material: high impact plastic, Anti-UV,Ultra Violet resistant and rainfall resistant. 1
* FTTH network and CATV system application
* Can be used for LC Duplex, SC,FC Adapter
* Can be connected 1 inlet ports, 4 outlet ports, cable diameter is 7mm to 10mm
1. Environmental temperature: -40°C-60°C
2. Max capacity: 4 fibers
3. Application for outdoor IP65 grade
4. Material: High impact plastic
5. Size: 210(W)X140(H)X40(D)mm
