| Place of Origin: | China |
| Brand Name: | TG or OEM |
| Certification: | Rohs |
| Model Number: | SC/PC Fiber Optic Adapter |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs/inner box; or against your requirements |
| Delivery Time: | Against the qty |
| Payment Terms: | TT; LC etc |
| Supply Ability: | 10000pcs/day |

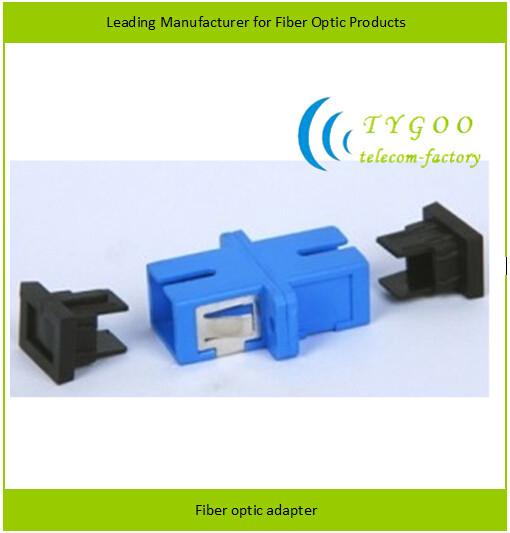

SC/PC Singlemode Simplex Fiber Optic Adapter
| Description |
|---|
|
Fiber Optic Adapter is a mechanical device designed to align fiber-optic connectors. it contains the interconnect sleeve, that holds the two ferrules together. Single mode adapters are with Zirconia sleeves, Multi mode adapters are with bronze sleeves |
|
Features: |
|---|
| Fiber Optic adapter PC,APC,UPC optional |
| Simplex / Duplex ; Multi-mode / Single-mode optional |
| Good Compatibility |
| Low insertion loss≤ 0.2dB ; High return loss≥ 45dB (PC), ≥ 60dB (APC) |
| High precision of mechanical dimensions |
| High reliability and stability |
| Operating temperture.: -40° C~+80° C |
| Color: Blue (PC/SM), Green (APC), Beige (PC/MM) |
| Application: |
|---|
| CATV System |
| Local area network |
| Equipment Test |
| Telecommunication Network |
| Wide Area Network |
