| Place of Origin: | China |
| Brand Name: | TG or OEM |
| Certification: | Rohs |
| Model Number: | SC/UPC Fiber Optic Pigtails |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag+inner box+carton; or against your requirements |
| Delivery Time: | Against the qty |
| Payment Terms: | TT; LC etc |
| Supply Ability: | 6000pcs/day |

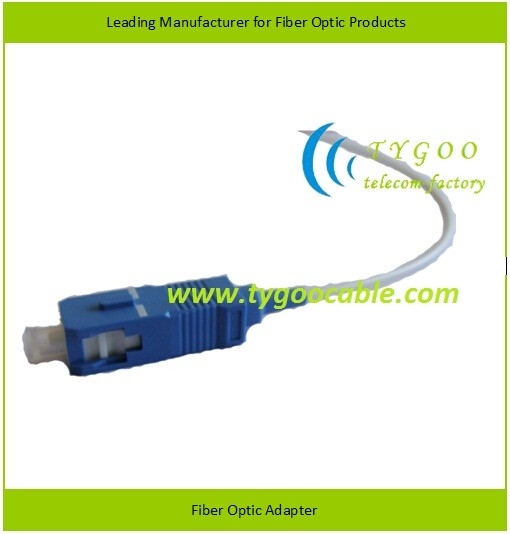

SC UPC SM SX 0.9mm Fiber Optic Pigtails for Optical CATV & LAN
Fiber optic pigtail is the cable with one piece construction and pulls proof design which has Low cost but high performance
Features:
Applications:
| CATV & Video |
| Premise installation |
| Active device termination |
| Telecommunication networks |
| Local area networks |
| Data processing networks |
| Wide area networks(Wans) |
| Industrial,medical & military |
Specifications:
Parameters:
Insertion Loss(IL): ≤0.3dB ( Singlemode & Multimode ) ( +25°C~+65°C, 93%R.H, 100 hours )
Return Loss(RL): ≥50(UPC) ; ≥60 (APC) ; ≥35 (PC) ( +25°C~+65°C, 93%R.H, 100 hours )
Interchangeability: <0.2dB ( Connect Randomly )
Vibration: <0.1dB ( 5-50HZ, 1.5mm amplitude )
Tensile Strength: <0.1dB ( 0-15kgf, 0.9mm exception )
High Temperature: <0.2dB ( +85°C, During 100 Hours)
Low Temperature: <0.2dB (-40°C, During 100 Hours)
Temperature Cycle: <0.2dB (-40°C~+85°C, during 5 Cycles)
Humidity: <0.2dB (+25°C~+65°C, 93%R.H, 100 hours)
